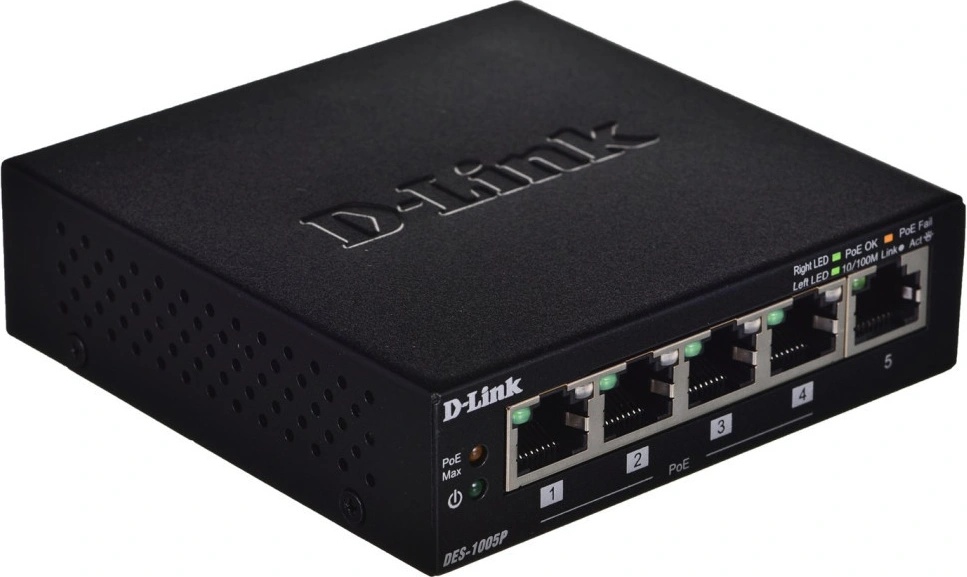

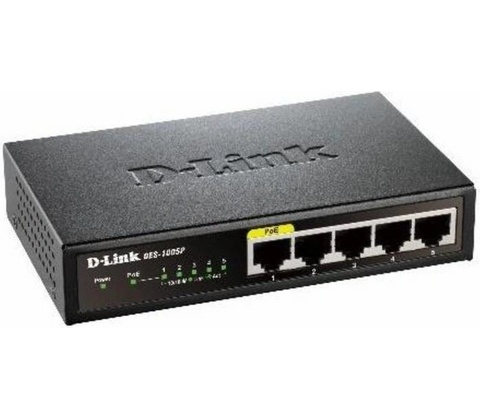

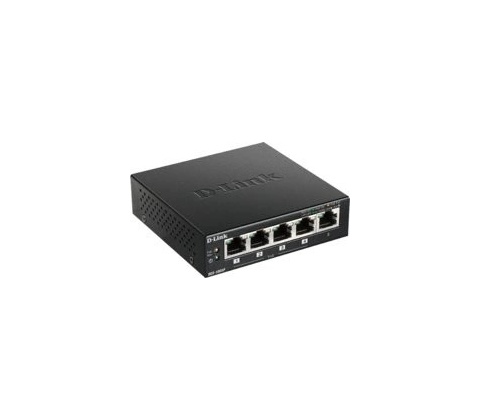

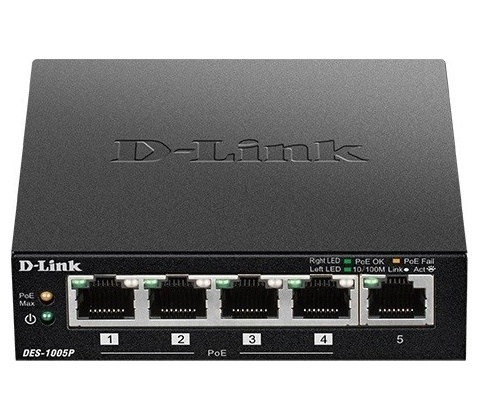

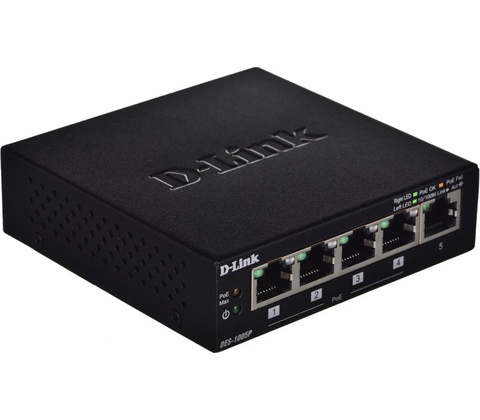

D-Link DES-1005P

5 Fast Ethernet ports 1 PoE-enabled port

Plug and Play operation

Quality of Service (QoS) queues for traffic prioritization

Non-blocking architecture, full speed on all ports simultaneously

Safety function to prevent PoE overloads, protects both the switch and the connected PoE device

Fanless, silent operation to fit in any environment 802.3az Energy Efficient Ethernet (EEE), saves money and increases the product’s lifespan

Cable length detection for additional power savings

The DES-1005P PoE Fast Ethernet Desktop switch provides a cost-effective way for SOHO and SMB to benefit from the Power over Ethernet (PoE) technology by allowing users to power up devices such as wireless Access Points, network cameras or IP phones directly from the network cables. The DES-1005P is equipped with one PoE port and integrates D-Link’s Green Ethernet technology to save power when the switch is not in use. Its fanless design makes it completely silent so it is ideal for offices, libraries or meeting rooms.

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x flow control

IEEE 802.1p QoS

IEEE 802.3az Energy Efficient Ethernet (EEE)

Layer2 Features

MAC address table: 2K

Auto MDI/MDIX crossover for all ports

Store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

PoE features 802.3af PoE standard (port #1 only)

Up to 15.4 W

Active circuit protection (PoE port disabled if shortcut detected)

CAT 5A PoE pin-out: 1,2,3,6

Switching fabric 1 Gbps

Data Transfer Rates

Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex)

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer 64 KB

LED Indicators

• Per port: Link/Activity/Speed/PoE Status
• Per device: Power/PoE Max

Quality of Service (QoS)

Supports 802.1p QoS 4 Queues, Strict Mode

Green features 802.3az Energy Efficient Ethernet (EEE) standard

Green Ethernet: power saving by cable-length detection

RoHS compliant

Power

External 48 V/0.5 A Level “V” Power Adapter

Power Consumption

Power On (stand-by):

• DC input: 0.9 W
• AC input: 1.8 W

Maximum (PoE off):

• DC input: 2.05 W
• AC input: 2.7 W

Maximum (PoE on):

• DC input: 17.29 W
• AC input: 20.2 W

MTBF 324,616 hours

Temperature

• Operating: 0 to 40 °C
• Storage: -40 to 70 °C

Humidity

• Operating: 10% to 90% RH non-condensing
• Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H) 140 x 85 x 28 mm

Certifications

FCC Class B

ICES-003 Class B cUL
