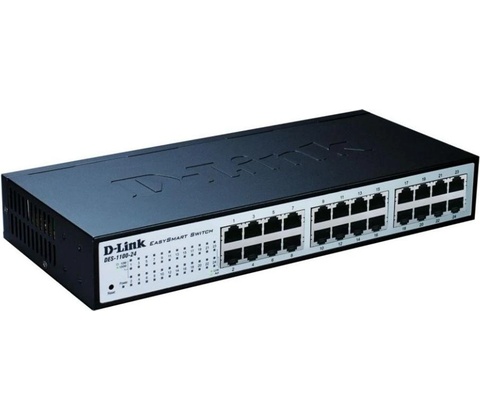

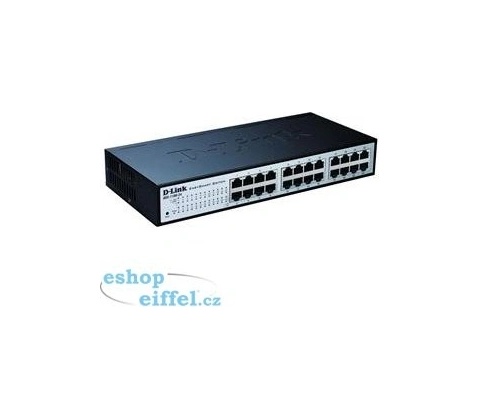

D-Link DES-1100-24

Basic configurable options 11-inch metal case. Comes with adapters to install in 19-inch racks

Fanless, silent operation

Improved resiliency, longer MTBF (Mean Time Between Failures)

VLAN support for traffic segmentation

Loopback detection and broadcast storm control to avoid network downtime

QoS (Quality of Service) and bandwidth control to ensure smooth operation

Cable diagnostics function to quickly troubleshoot wiring problems

Configurable through a web interface or SmartConsole utility

The DES-1100-24 EasySmart switch is the ideal entry-level solution for managed networks. Equipped with 24 Fast Ethernet ports, the DES-1100-24 integrates basic configurable options that provide performance and scalability. With an easy to use web interface, these switches help customers to quickly and easily deploy their networks. Their fanless design makes them completely silent and very reliable, and their eco-friendly technology saves energy and money.

Resilience and performance

The basic lineup of L2 features in the EasySmart series makes them very suitable for SMB with small IT teams, without sacrificing on performance and security. Network downtime is reduced drastically with loopback detection and broadcast storm control. Security and confidentiality of network traffic is guaranteed with VLANs. Ample bandwidth on the uplinks to the rest of the network can be achieved with Link Aggregation, and the Cable Diagnostics function provides an easy and convenient way to quickly detect and troubleshoot cabling problems.

Versatile management

The EasySmart series can be easily configured through an intuitive, password-protected web-based interface or a PC-based Smart Console Utility. The web interface allows network administrators to remotely control and monitor the switch down to the port level. The SmartConsole Utility is a very convenient way to set up a number of EasySmart switches in the same network segment. The SmartConsole Utility will automatically discover all available switches and provide instant access, so network deployments can be completed easily and effectively.

Features 10/100Base-TX Fast Ethernet ports 11” rack size

Auto MDI/ MDIX 802.3x Flow control

Performance

• Switching capacity: 3.2 Gbps (DES-1100-16), 4.8 Gbps (DES-1100-24)
• Max. forwarding rate: 2.38 Mpps (DES-1100-16), 3.57 Mpps (DES-1100-24)
• MAC table: 8K entries
• Packet buffer: 1.75 Mbits

Network

Static trunking (2 groups, 2 or 4 ports per group)

Loopback detection (LBD)

Bandwidth control (port-based)

IGMP snooping

Port mirroring

WLAN 802.1q VLAN

Port-based VLAN

Static VLAN (32 groups)

VLAN VID configurable (1-4096)

Quality of Service (QoS) 802.1p QoS 2 queues per port

Strict priority or Weighted Round Robin (WRR)

Security

Static MAC (128 entries)

Broadcast/Multicast/Unknown Unicast Storm Control

Management

Web-based GUI

SmartConsole Utility

Password control

Configuration backup/restore

Firmware upgradeable
