D-Link GO-SW-8E

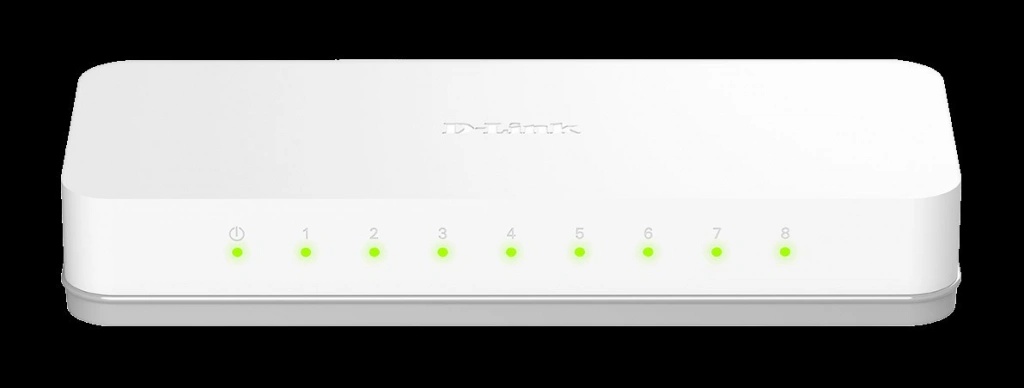

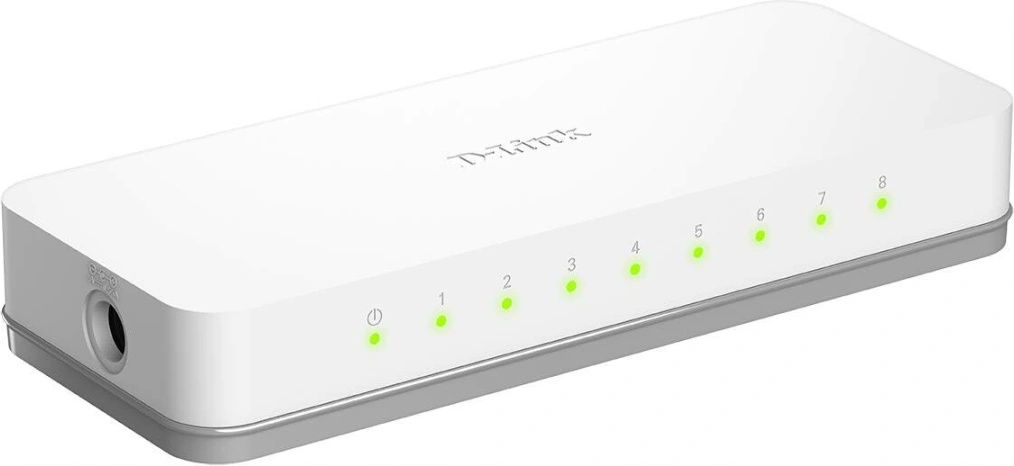

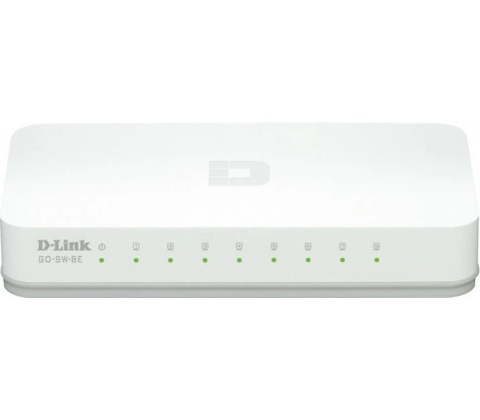

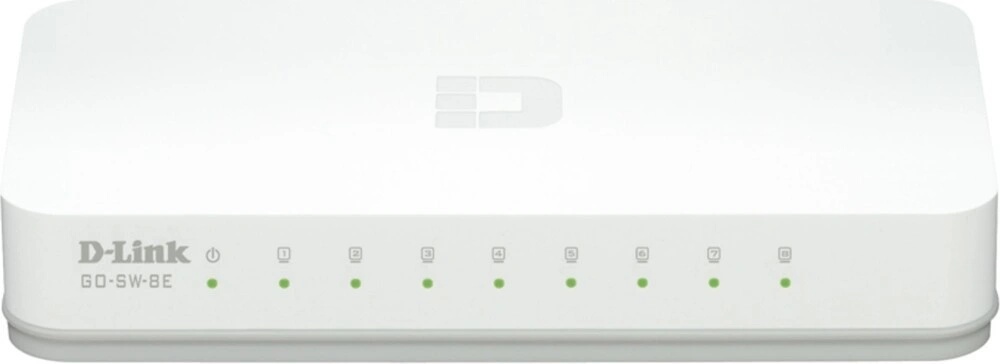

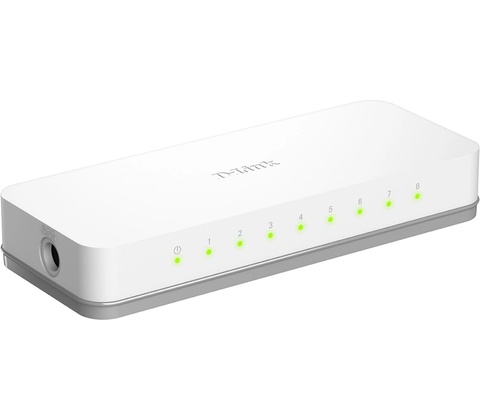

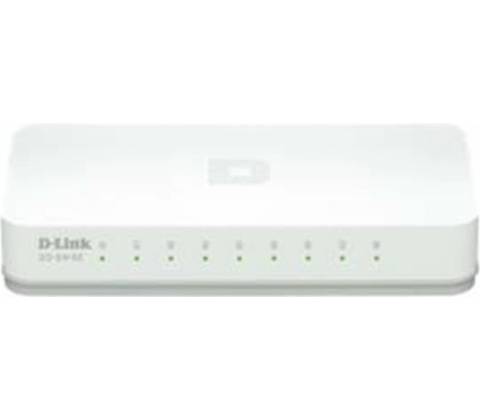

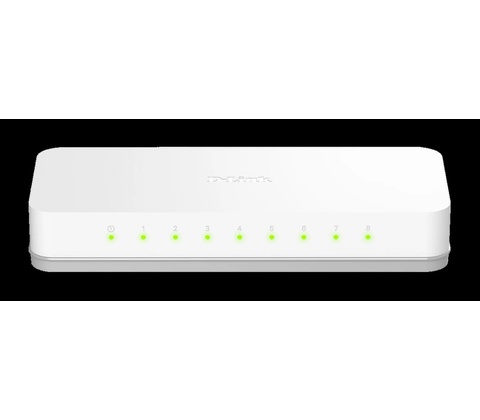

D-Link GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch

OVERVIEW

The dlinkgo GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-8E is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-8E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.

SPECIFICATIONS

Device Interfaces • Eight 10/100 Fast Ethernet LAN ports

Advanced Features

• Green Ethernet
• 1.6 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Compliance with IEEE802.3az EEE power saving
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Plug-and-play installation
• RoHS compliant
• Supports 2048-byte Jumbo Frames

Protocol • CSMA/CD

Data Transfer • Rates Ethernet: o 10 Mbps (half duplex) o 20 Mbps (full duplex) • Fast Ethernet: o 100 Mbps (half duplex) o 200 Mbps (full duplex)

Transmission Method • Store-and-forward

MAC Address Table • 2K

MAC Address Learning • Automatic Update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer • 128 KB per device

LED Indicators

• Per port: Link/Activity
• Per device: Power

Media Interface Exchange • Auto MDI/MDIX adjustment for all ports

Dimensions • 130.04 x 79.2 x 22.8 mm

Power • 5 V/1 A Power Adapter

Heat Dissipation

• Power On (Standby): AC input:2.0472 Btu/h
• Maximum: AC input:7.47228 Btu/h

Power Consumption

• Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts
• Maximum: DC input: 1.78 watts, AC input: 2.19 watts
• Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts

Temperature

• Operating: 0 to 50 °C
• Storage: -10 to 70 °C

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing

MTBF • 2,137,319 hours

Certifications

• CE class B
• ICES-003 Class B
• C-Tick Class B
• FCC class B
• cUL/UL
• CCC
• Anatel
• CB
• VCCI Class B

Související odkazy - Odkaz na web výrobce

Související dokumenty - Datasheet
