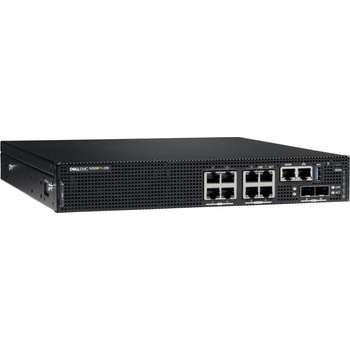

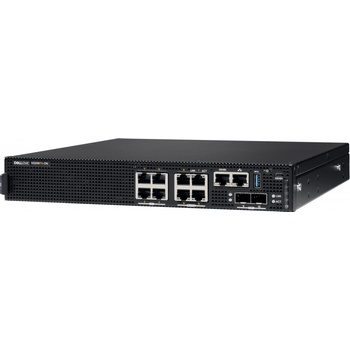

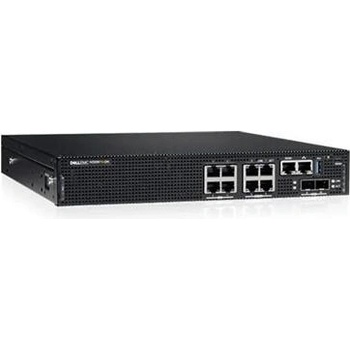

Dell N3208PX-ON

N3208PX-ON 4x1G RJ-45 4x1/2.5/5G RJ-45 2x10G SFP+ PoE 90W 1xAC PSU IO/PS OS6 - Lifetime limited HW

Latest generation compact 5G MultiGig Campus Access Switches 802.3bt Type-4 (90W) PoE

N3208PX-ON - Compact, 4x1/2.5/5G RJ-45 with 802.3bt Type-4 (90W) PoE, 4x1G RJ-45 with 802.3bt Type-4 (90W) ports 10G Uplinks to aggregation 802.11ax and 802.11ac Wave2 WLAN deployments and 802.3bt Type-3 high power PoE applications requiring up to 90W per port.

Ideal for Mid to Large Enterprise Campus networks, Retail deployments

Performance

• Switch fabric capacity (full duplex): 88Gbps (N3208PX-ON); 528Gbps (N3224T-ON, N3224F-ON and N3224P-ON); 1080Gbps (N3224PX-ON); 576Gbps (N3248TE-ON and N3248P-ON); 1560Gbps (N3248X-ON and N3248PXE-ON)
• Forwarding rate: 122Mpps (N3208PX-ON); 733Mpps (N3224T-ON, N3224F-ON and N3224P-ON); 1500Mpps (N3224PX-ON); 800Mpps (N3248TE-ON, N3248P-ON), 2167Mpps (N3248X-ON, N3248PXE-ON)

Power

Optional Power Supplies: 550W AC hot swappable with IO/PS airflow, adds redundancy to N3224T-ON, N3224F-ON, N3248TE-ON, N3248X-ON 550W AC hot swappable with PS/IO airflow, adds redundancy to N3224T-ON, N3248TE-ON, N3248X-ON 1050W AC hot swappable with IO/PS airflow, adds redundancy and/or extends PoE budget for N3224P-ON, N3248P-ON. Also used with MPS-1S shelf, MPS-3S Shelf 1600W AC hot swappable with IO/PS airflow, adds redundancy and/or extends PoE budget for N3224PX-ON, N3248PXE-ON. Also used with MPS-1S shelf, MPS-3S Shelf

Power Cords:

C15 to NEMA 5-15, 1.8M (N3208PX-ON only)

C13 to NEMA 5-15, 3M (all other N3200 models)

C13 to C14, 2M (all other N3200 models)

Ports

N3208PX-ON - 4x RJ45 10M/100M/1G/2.5G/5G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x RJ45 10M/100M/1G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 2x 10G SFP+ ports

N3224T-ON - 24x RJ45 10M/100M/1G auto-sensing ports, 4x 10G SFP+ ports

N3224F-ON - 24x 1G SFP, 4x 10G SFP+ ports

N3224P-ON - 24x RJ45 10M/100M/1G 802.3at (up to 30W) PoE auto-sensing ports, 4x 10G

SFP+ ports

N3224PX-ON - 24x RJ45 10M/100M/1G/2.5G/5G/10G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x 25G SFP28 ports

N3248TE-ON - 48x RJ45 10M/100M/1G auto-sensing ports, 4x 10G SFP+ ports

N3248P-ON - 48x RJ45 10M/100M/1G 802.3at (up to 30W) PoE auto-sensing ports, 4x 10G SFP+ ports

N3248X-ON - 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports

N3248PXE-ON - 48x RJ45 10M/100M/1G/2.5G/5G/10G 802.3bt Type-4 (up to 90W) PoE auto-sensing ports, 4x 25G SFP28 ports 2 integrated rear 100GbE QSFP28 stacking ports (except N3208PX-ON)

Out-of-band management port (10/100/1000BASE-T)

USB (Type A) port for configuration via USB flash drive

USB (Type B) console port (USB to USB connector cable included)

RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included)

Dimensions & Weight

N3208PX-ON - Height: 1.71" (43.44 mm) x Width: 11" (279.4 mm) x Depth: 12.28" (312 mm)

All other models - Height: 1.71" (43.44 mm) x Width: 17.09" (434.086 mm) x Depth: 15.75" (400.05 mm)

Security

RADIUS, TACACS+, 802.1x

Regulatory

Emissions & Safety

• Australia/New Zealand: ACMA RCM Class A
• Canada: ICES Class A; cUL
• China: CCC Class A; NAL
• Europe: CE Class A
• Japan: VCCI Class A
• USA: FCC Class A; NRTL UL; FDA 21 CFR 1040.10 and 1040.11
• Eurasia Customs Union: EAC Germany: GS mark

Product meets EMC and safety standards in many countries inclusive of USA, Canada, EU, Japan, China.

For more country-specific regulatory information and approvals, please see your Dell EMC representative.

RoHS

Product meets RoHS compliance standards in many countries inclusive of USA, EU, China, and India. For more country-specific RoHS compliance information, please see your Dell EMC representative.

EU WEEE

EU Battery Directive REACH

Energy

Japan: JEL

Product Safety, EMC and Environmental Datasheets

Dell Regulatory Compliance Home Page

Dell and the Environment

Management

CLI, Web, SNMP

Other Switching

Open networking

Environmental

Power supply efficiency: 80% or better in
