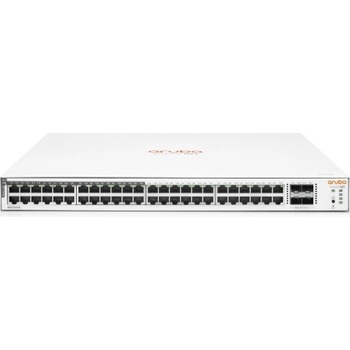

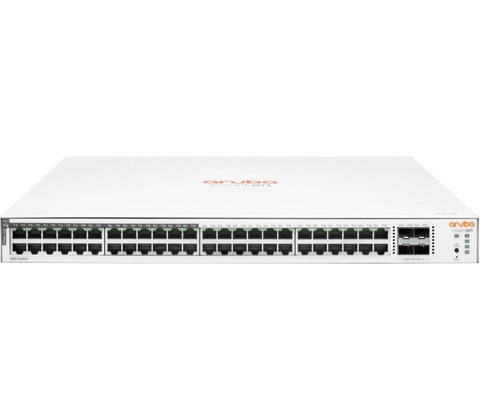

HP JL815A
Nejlevnější nabídky (22)
Popis produktu
Parametry produktu
Parametry produktu
Popis produktu
Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)
Aruba Instant On 1830 8G Switch (JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch (JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)
Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
I/O ports and slots 8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 8 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports 24 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports 48 RJ-45 autosensing 10/100/1000 ports
IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports
Physical Characteristics
Dimensions 157.0(d) x 173.0(w) x 39.1(h) mm 195.1(d) x 245.1(w) x 43.9(h) mm 215.9(d) x 443.0(w) x 43.9(h) mm 253.0(d) x 443.0(w) x 43.9(h) mm 253.0(d) x 443.0(w) x 43.9(h) mm 351.0(d) x 443.0(w) x 43.9(h) mm
Weight 1.70 lb (0.77 kg) 3.40 lb (1.54 kg) 5.50 lb (2.49 kg) 7.65 lb (3.47 kg) 7.80 lb (3.54 kg) 10.90 lb (4.94 kg)
Processor and Memory
ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
ARM Cortex-A9 @ 800MHz,
- 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
- ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
- ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
- "RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
- ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
Aruba Instant On 1830 8G Switch (JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch (JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)
Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
Performance 100 Mb latency < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec < 5.2 uSec 1000 Mb latency < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec < 2.8 uSec 10000 Mb latency n/a n/a n/a n/a n/a n/a
Throughput (Mpps) 11.90 Mpps 11.90 Mpps 38.68 Mpps 38.68 Mpps 77.37 Mpps 77.37 Mpps
Capacity 16 Gbps 16 Gbps 52 Gbps 52 Gbps 104 Gbps 104 Gbps
MAC address table size (# of entries) 8,000 entries 8,000 entries 16,000 entries 16,000 entries 16,000 entries 16,000 entries
Reliability MTBF (years) 188.2 105.9 203.6 96.6 114.4 83.5
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C) 15% to 95% @ 104°F (40°C)
Nonoperating/ storage temperature
- 40°F to 158°F (-40°C to 70°C)
- 40°F to 158°F (-40°C to 70°C)
- 40°F to 158°F (-40°C to 70°C)
- 40°F to 158°F (-40°C to 70°C)
- 40°F to 158°F (-40°C to 70°C)
- 40°F to 158°F (-40°C to 70°C)
Nonoperating/ storage relative humidity 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C) 15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustics1
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB
Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) 100% traffic
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
LWAd = 3.4 Bel LpAm (Bystander) = 19 dB
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB 100% traffic / 0% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB -
LWAd = 3.5 Bel LpAm (Bystander) = 20 dB 100% traffic / 50% PoE
Fanless
Fanless
Fanless
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB -
LWAd = 4.0 Bel LpAm (Bystander) = 25 dB 100% traffic / 100% PoE
Fanless
Fanless
Fanless
LWAd = 5.1 Bel LpAm (Bystander) = 35 dB -
LWAd = 5.7 Bel LpAm (Bystander) = 41 dB
Aruba Instant On 1830 8G Switch (JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch (JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)
Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
Electrical Characteristics
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
AC voltage 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC 100-127VAC / 200- 240VAC
Current 12V -- 1.0A 1.0A/0.5A 0.4A/0.3A 2.7A/1.4A 0.9A/0.6A 5.2A/2.6A
Maximum power rating
- 100-127V: 8.09W 200-220V: 8.05W
- 100-127V: 86.07W 200-220V: 83.67W
- 100-127V: 19.1W 200-220V: 19W
- 100-127V: 244.6W 200-220V: 237.2W
- 100-127V: 40.2W 200-220V: 40W
- 100-127V: 462.5W 200-220V: 452.5W
Idle power
- 100-127V: 5.8W 200-220V: 5.9W
- 100-127V: 8.3W 200-220V: 8.2W
- 100-127V: 7.6W 200-220V: 7.8W
- 100-127V: 14.5W 200-220V: 13.4W
- 100-127V: 17.7W 200-220V: 17.7W
- 100-127V: 25.8W 200-220V: 25.4W
PoE power 13W max Class 3 PD 65 W Class 4 PoE - 195 W Class 4 PoE - 370 W Class 4 PoE
Power supply
External power adapter (included)
Internal power supply
Internal power supply
Internal power supply
Internal power supply
Internal power supply
Safety
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
- EN/IEC 60825-1:2014 Class 1
- EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
- EN/IEC 60825-1:2014 Class 1
- EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
L 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
- EN/IEC 60825-1:2014 Class 1
- EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
- EN/IEC 60825-1:2014 Class 1
- EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
- EN/IEC 60825-1:2014 Class 1
- EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 1
Emissions
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
- EN 55032:2015/CISPR 32, Class A
- FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
Aruba Instant On 1830 8G Switch (JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch (JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)
Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
Immunity
Generic
EN 55035, CISPR 35, KN35
EN 55035, CISPR 35, KN35
EN 55035, CISPR 35, KN35
EN 55035, CISPR 35, KN35
EN 55035, CISPR 35, KN35
EN 55035, CISPR 35, KN35
EN
EN 55035, CISPR 35
EN 55035, CISPR 35
EN 55035, CISPR 35
EN 55035, CISPR 35
EN 55035, CISPR 35
EN 55035, CISPR 35
ESD
EN/IEC 61000-4-2
EN/IEC 61000-4-2
EN/IEC 61000-4-2
EN/IEC 61000-4-2
EN/IEC 61000-4-2
EN/IEC 61000-4-2
Radiated
EN/IEC 61000-4-3
EN/IEC 61000-4-3
EN/IEC 61000-4-3
EN/IEC 61000-4-3
EN/IEC 61000-4-3
EN/IEC 61000-4-3
EFT/Burst
EN/IEC 61000-4-4
EN/IEC 61000-4-4
EN/IEC 61000-4-4
EN/IEC 61000-4-4
EN/IEC 61000-4-4
EN/IEC 61000-4-4
Surge
EN/IEC 61000-4-5
EN/IEC 61000-4-5
EN/IEC 61000-4-5
EN/IEC 61000-4-5
EN/IEC 61000-4-5
EN/IEC 61000-4-5
Conducted
EN/IEC 61000-4-6
EN/IEC 61000-4-6
EN/IEC 61000-4-6
EN/IEC 61000-4-6
EN/IEC 61000-4-6
EN/IEC 61000-4-6
Power frequency magnetic field
EN/IEC 61000-4-8
EN/IEC 61000-4-8
EN/IEC 61000-4-8
EN/IEC 61000-4-8
EN/IEC 61000-4-8
EN/IEC 61000-4-8
Voltage dips and interruptions
EN/IEC 61000-4-11
EN/IEC 61000-4-11
EN/IEC 61000-4-11
EN/IEC 61000-4-11
EN/IEC 61000-4-11
EN/IEC 61000-4-11
Harmonics
EN/IEC 61000-3-2
EN/IEC 61000-3-2
EN/IEC 61000-3-2
EN/IEC 61000-3-2
EN/IEC 61000-3-2
EN/IEC 61000-3-2
Flicker
EN /IEC 61000-3-3
EN /IEC 61000-3-3
EN /IEC 61000-3-3
EN /IEC 61000-3-3
EN /IEC 61000-3-3
EN /IEC 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Aruba Instant On Cloud; Web browser; SNMP Manager
Aruba Instant On Cloud; Web browser; SNMP Manager
Aruba Instant On Cloud; Web browser; SNMP Manager
Aruba Instant On Cloud; Web browser; SNMP Manager
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting
Mounting positions and supported racking
Supports table-top mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using base surface mounting holes
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Suports under-table mounting using the brackets provided
Aruba Instant On 1830 8G Switch (JL810A)
Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)
Aruba Instant On 1830 24G 2SFP Switch (JL812A)
Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)
Aruba Instant On 1830 48G 4SFP Switch (JL814A)
Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
Transceivers
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) .
Chybí či je nepravdivý některý důležitý parametr? Uvedené informace jsou pouze orientační, před zakoupením ve vybraném obchodě doporučujeme ověřit, že prodávaný model má klíčové vlastnosti dle vašich požadavků. I když se snažíme o maximální přesnost informací, bohužel nemůžeme zaručit jeho 100% správnost. Ceny produktů jsou uváděny včetně DPH.
Produkt zatím nemá žádné recenze.
