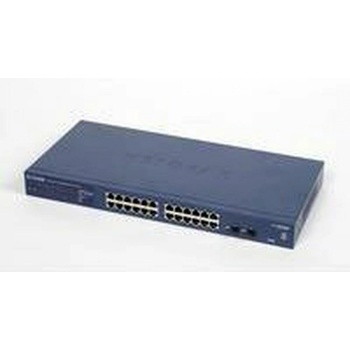

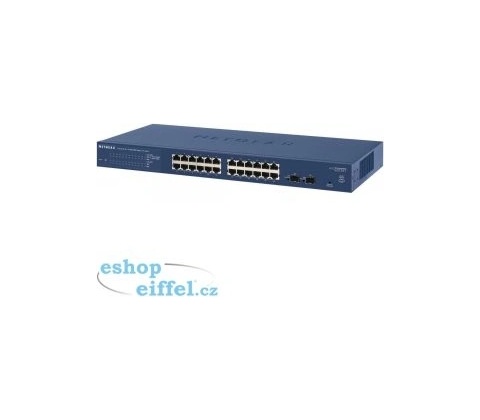

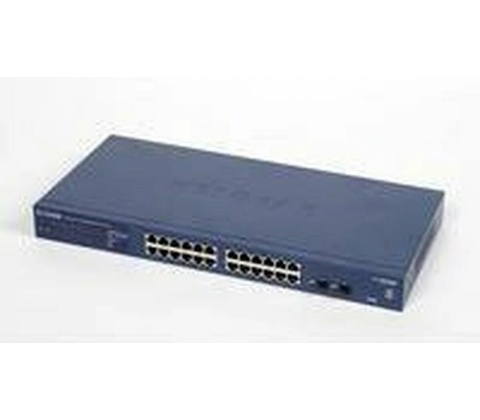

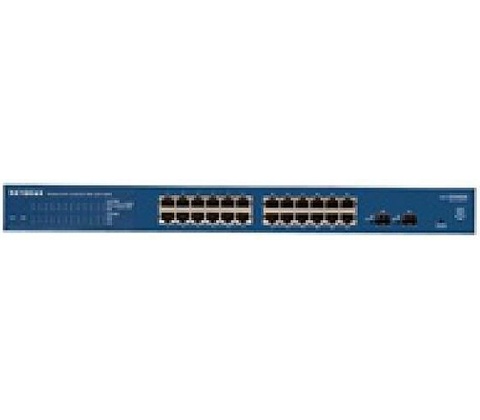

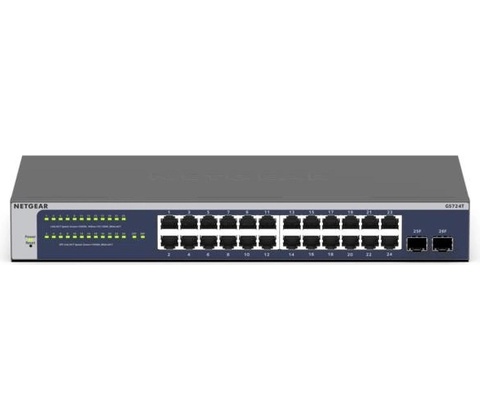

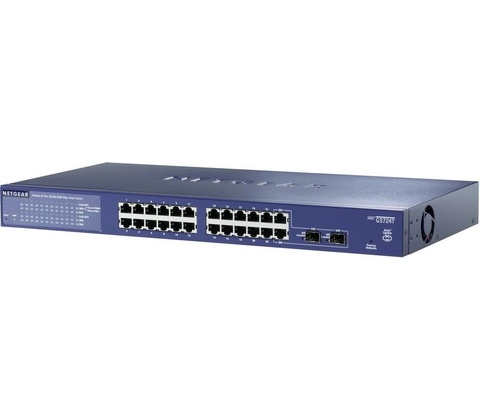

Netgear GS724T

Společnost Netgear poskytuje ucelené řešení pro SMB, která vynikají výkonem a spolehlivostí. Spolu s jednoduchou instalací a správou získáváte špičkové řešení, které má velmi přiznivé náklady na pořízení a provoz.

Network Protocol and Standards Compatibility

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3x full-duplex flow control

Interfaces

• GS724T: 24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
• GS716T: 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)

2 Dual Personality SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

IEEE 802.1D Spanning Tree Protocol

RFC 1157 SNMP v1, v2c

RFC 1213 MIB II

RFC 1643 Ethernet Interface MIB

RFC1493 Bridge MIB

Private Enterprise MIB

Jumbo Frame Support (up to 9216 bytes)

IEEE 802.1Q Tag VLAN

GS716T: 64 Static VLANs - Supports 16 port-based VLAN

GS724T: 128 Static VLANs - Supports 24 port-based VLAN

IEEE 802.1p (Class of Service)

DSCP - L3 QoS

Port-based QoS (options High/Normal)

Port Trunking - Manual as per IEEE802.3ad Link Aggregation

DHCP client function

Access Control: Trusted MAC

Broadcast storm control (GS724T only)

Port mirroring (many-to-one)

Port setting

Web-based configuration, anywhere on the network

Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent

Configuration backup/restore (easy to configure more than one switch)

Password access control and Restricted IP Access List

Firmware upgradeable

Active Flow Control

Full-duplex IEEE 802.3x pause frame flow control

Half-duplex back-pressure control

Performance Specifications

• Forwarding modes: Store-and-forward
• Bandwidth: GS724T = 48 Gbps, GS716T = 32 Gbps

Network latency:

GS716T average latency 34.8 us for 100 Mbps with 64 bytes

GS724T average latency 10.59 us for 100 Mbps with 64 bytes

• Buffer memory: 256 KB embedded memory per unit
• Priority queues: 4
• Priority queuing: Weighted Round Robin (WRR)
• Address database size: 8,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address

Mean time between failures (MTBF):

• GS716T = 59,500 hours (~6.8 years)
• GS724T = 59,500 hours (~6.8 years)

Acoustic Noise:

• GS724T = 41 dBA
• GS716T = 42.5 dBA

LEDs

• Unit: Power
• Per port: Link, activity, speed, duplex

Power Supply

Power Consumption:

• GS716T - 32W
• GS724T - 43.2W

100-240V AC/50-60 Hz universal input

Physical Specifications

Dimensions (h x w x d):

• GS716T: 43 x 440 x 205 mm (1.7 x 17.3 x 8.1 in)
• GS724T: 43 x 440 x 260 mm (1.7 x 17.3 x 10.2 in)

Weight:

• GS716T: 3.5 kg (7.7 lb)
• GS724T: 3.6 kg (7.9 lb)

Environmental Specifications

• Operating temperature: 32° to 104°F (0° to 40° C)
• Storage temperature: -4° to 158°F (-20° to 70° C)
• Operating humidity: 90% maximum relative humidity, non-condensing
• Storage humidity: 95% maximum relative humidity, non-condensing
• Operating altitude: 10,000 ft (3,000 m) maximum
• Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Compliance

CE mark, commercial

FCC Part 15 Class A

VCCI Class A

EN 55022 (CISPR 22)

EN 55024 (CISPR 24)

C-Tick

Safety Agency Approvals

UL listed (UL 1950)/cUL

IEC 950/EN 60950

CE mark, commercial

CUL 60950 (Listed)/EN 60950 (Low Voltage Directive)

Modules

NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC Module with LC connectors for 50um or 62.5um multi-mode fiber cable

NETGEAR ProSafe AGM732F Fiber 1000BASE-LX SFP GBIC Module with LC connectors for 9um single-mode fiber cable

NETGEAR ProSafe AGM733 Fiber 1000BASE-ZX SFP GBIC Module with LC connectors for 9um single-mode fiber cable

Warranty

NETGEAR Lifetime Warranty†

ProSupport Service Packs Available

OnCall 24x7, Category 1

PMB0331-100 (US)

PMB0331 (non-US)

XPressHW, Category 1

PRR0331

Package Contents 16- or 24-port Gigabit Smart Switch (GS716T or GS724T)

Rubber footpads

Power cord

Rack-mount kit

Smart Switch resource CD

Smart Switch installation guide

Warranty/support information card

Ordering Information

GS716T

• North America: GS716TNA
• Europe: GS716TEU
• Asia: GS716TAU
• Japan: GS716TJP

GS724T

• North America: GS724TNA
• Europe: GS724TEU
• Asia: GS724TAU
• Japan: GS724TJP
