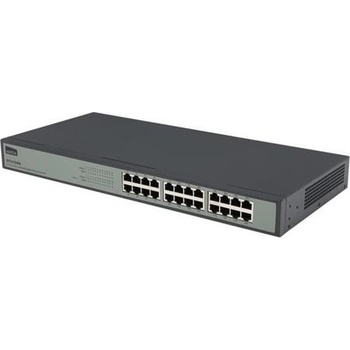

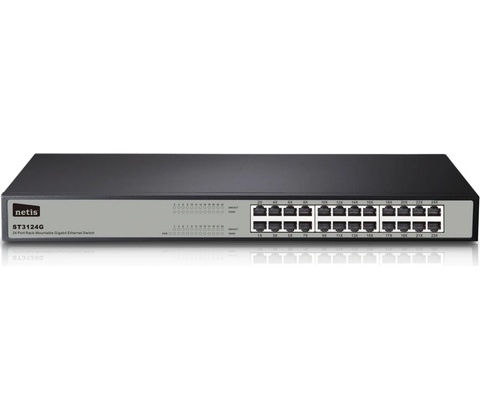

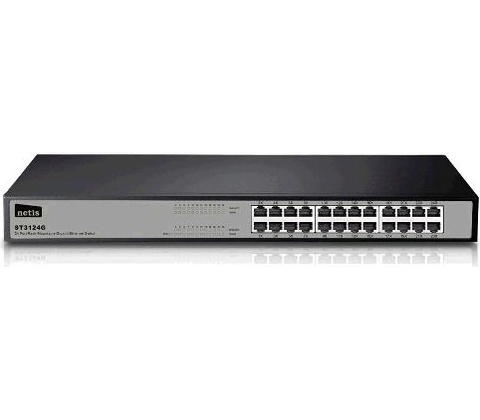

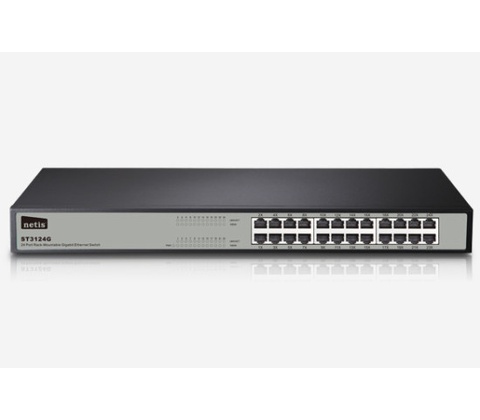

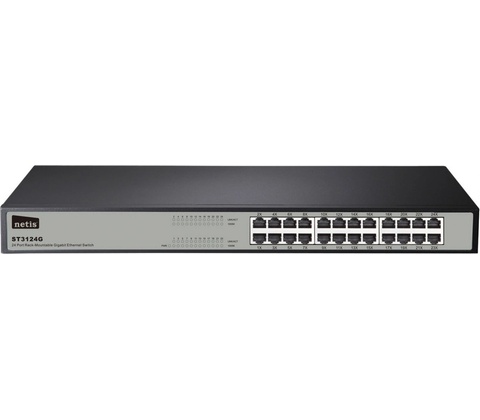

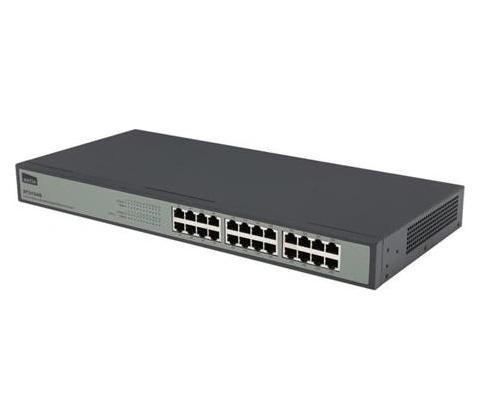

Netis ST3124G

HARDWARE

Interface • 24 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX

LED • PWR, 1-24 10/100/1000M, 1-24 LINK/ACT

Power Supply • 100-240 V AC/50-60Hz

Dimensions (L x W x H ) • 432 x 200 x 44 mm

SOFTWARE

Standards • IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000BASE-T , IEEE 802.3x Flow Control, IEEE 802.3az

Access Method • CSMA/CD

Transmission Method • Store and Forward

Data Transmission Rate

• 10/100/1000Mbps(Half-duplex)
• 20/200/2000Mbps(Full-duplex)

Switching Fabric Capacity • 48Gbps

Built-in Buffer • 3.5M bits

Jumbo Frame • 9KB

MAC Address Table • 16K

OTHERS

Certification • FCC, CE, KC, BSMI

Environment

• Operating Temperature: 0°C~40°C
• Storage Temperature: - 20°C~70°C
• Operating Humidity: 5%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package

• 1 * ST3124G
• 1 * Quick Installation Guide
• 2 * Brackets
• 1 * Power Cord
