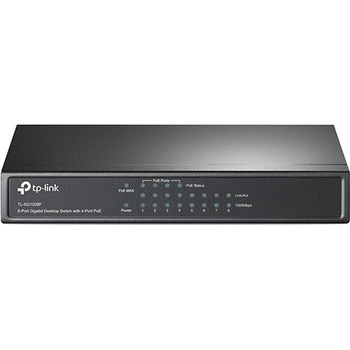

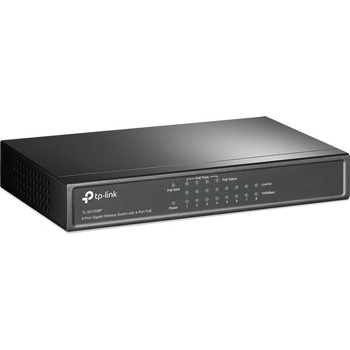

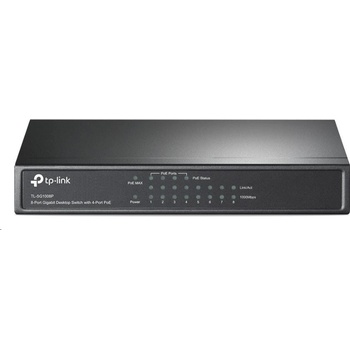

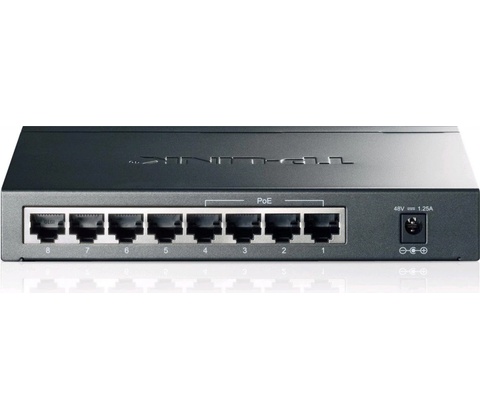

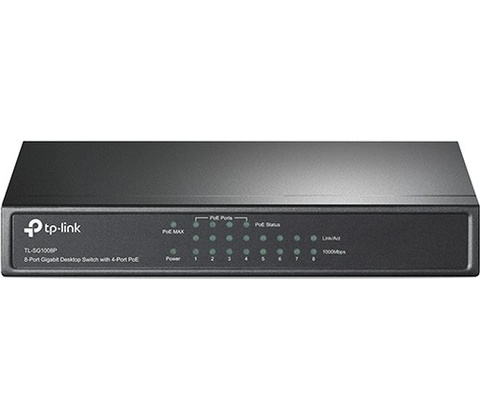

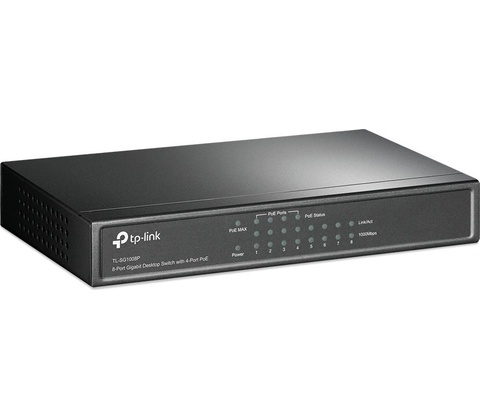

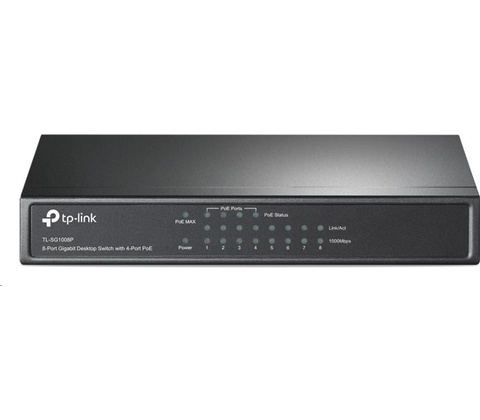

TP-LINK TL-SG1008P

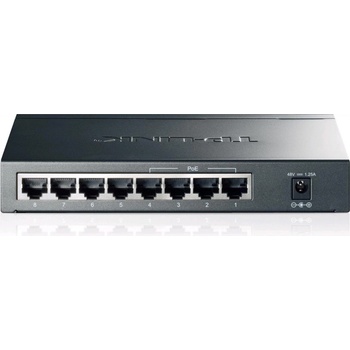

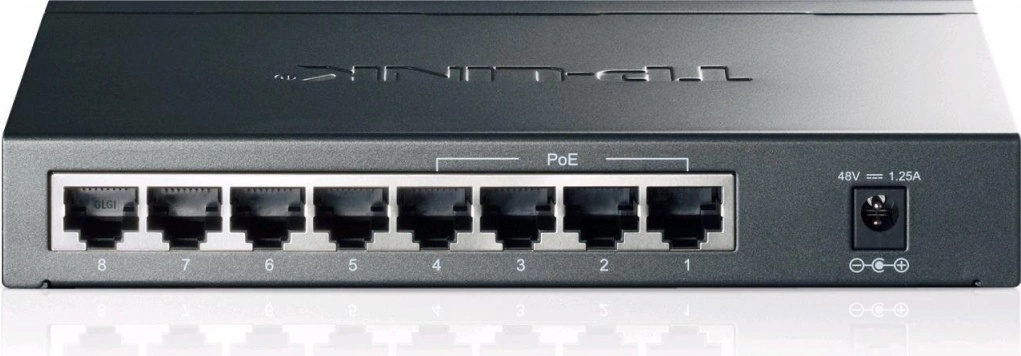

HARDWARE FEATURES Interface 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) PoE Ports (RJ45) Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 53W Backbound Bandwidth 16Gbps Mac Address Table 8K External Power Supply External Power Adapter(Output: 48VDC / 1.25A) Dimensions (W X D X H) 6.7*3.9*1.1 in. (171*98*27 mm) Fan Quantity Fanless SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode OTHERS Certification FCC, CE, RoHS Package Contents TL-SG1008P, Power Adapter, User Guide Consumption 5.8 watts (max. no PD connected) 58.8 watts (max. with 53w PD connected) Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
