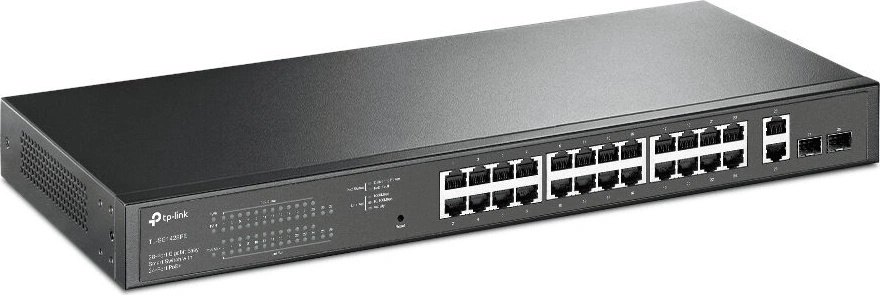

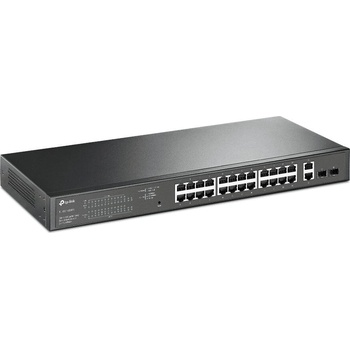

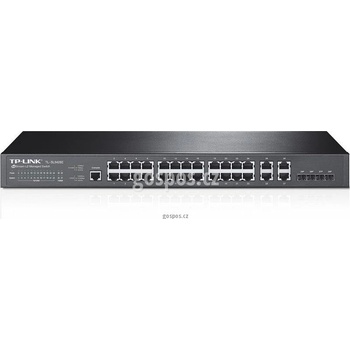

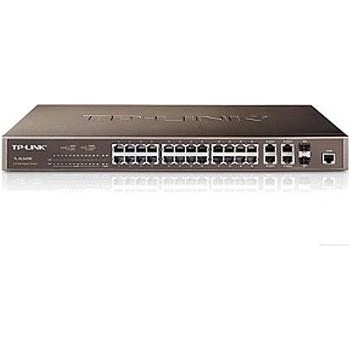

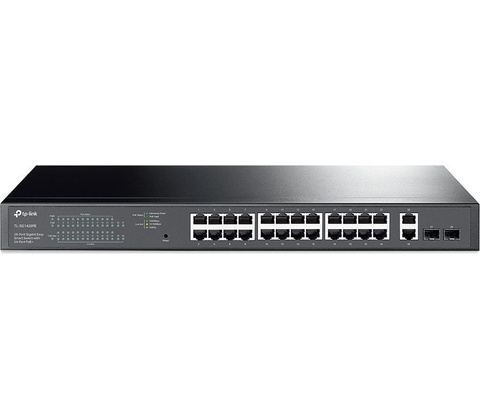

TP-Link TL-SL5428E

JetStream 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch T2500-28TC

• AAA, ACL, 802.1X Authentication, Port Security, IP Filtering, Storm control, DHCP Snooping, IP Source Guard and DoS Defend provide you robust security strategy
• DDM provides the monitoring of all SFP Modules inserting to the switch
• L2/L3/L4 QoS and IGMP snooping optimize voice and video application
• SNMP, RMON, WEB/CLI/Telnet Log-in bring abundant management policies
• HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface: 24 10/100Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 4 10/100/1000Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 4 Combo Gigabit SFP Ports, 1 Console Port

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m), 1000BASE-X: MMF, SMF

Fan Quantity: Fanless

Power Supply: 100~240VAC, 50/60Hz

Power Consumption: Maximum: 15W (220V/50Hz)

Dimensions ( W x D x H ): 17.3*7.1*1.7 in.(440*180*44 mm) *PERFORMANCE

Stacking: 32 Units Virtual Stacking

Bandwidth/Backplane: 12.8Gbps

Packet Forwarding Rate: 9.5Mpps

MAC Address Table: 8k

Jumbo Frame: 2048 Bytes *SOFTWARE FEATURES

Quality of Service: 4 Queues/Port 802.1p/IP DSCP based COS,TOS

L2 Features: IGMP Snooping: V1/V2/V3, 802.3ad with LACP, STP/RSTP/MSTP, BPDU Filtering/Guard, Port Mirroring, Flow Control

VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), Port/ Tag-based/Private/Protocol-based VLAN/, QinQ, GVRP

Access Control List: Packet Flow Filter; Packet Flow Redirection;

Time Range Based; Flow-based QoS

Security: IP-MAC-Port-VID Binding

IEEE 802.1x (Radius):Port/MAC Based, VLAN assignment, Guest VLAN, QoS assignment,

Supplicant Support

DoS Defend

Dynamic ARP inspection (DAI)

SSH: V1/V2

SSL:V1.5/V2

Port Security

Broadcast Storm Control

Guest VLAN

IP Source Guard

IPv6: Dual IPv4/IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 Applications: DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

Management: System Diagnose: VCT

DDM sFlow

SNMP: V1/V2/V3

RMON: Group 1, 2, 3, 9

Command Line Interface: Telnet/Console

Time Setting: SNTP

Firmware Upgrade: TFTP & Web

DGCO Client & BOOTP Client

SYSLOG & Public MIBS *OTHERS

Certification: CE, FCC, RoHS

Package Contents: Switch; Power Cord; Quick Installation Guide;

Resource CD; Rackmount Kit; Rubber Feet

System Requirements: Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux

Environment: Operating Temperature: 0?~40? (32?~104?);

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Nahrazuje předcházející

• HARDWARE FEATURES
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
  • Interface: 24 10/100Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 4 10/100/1000Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 4 Combo Gigabit SFP Ports, 1 Console Port
  • Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m), 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100? STP (maximum 100m), 1000BASE-X: MMF, SMF
  • Fan Quantity: Fanless
  • Power Supply: 100~240VAC, 50/60Hz
  • Power Consumption: Maximum: 15W (220V/50Hz)
  • Dimensions ( W x D x H ): 17.3*7.1*1.7 in.(440*180*44 mm)
• PERFORMANCE
  • Stacking: 32 Units Virtual Stacking
  • Bandwidth/Backplane: 12.8Gbps
  • Packet Forwarding Rate: 9.5Mpps
  • MAC Address Table: 8k
  • Jumbo Frame: 2048 Bytes
• SOFTWARE FEATURES
  • Quality of Service: 4 Queues/Port 802.1p/IP DSCP based COS,TOS
  • L2 Features: IGMP Snooping: V1/V2/V3, 802.3ad with LACP, STP/RSTP/MSTP, BPDU Filtering/Guard, Port Mirroring, Flow Control
  • VLAN: Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs), Port/ Tag-based/Private/Protocol-based VLAN/, QinQ, GVRP
  • Access Control List: Packet Flow Filter; Packet Flow Redirection;

Time Range Based; Flow-based QoS

• Security: IP-MAC-Port-VID Binding
• IEEE 802.1x (Radius):Port/MAC Based, VLAN assignment, Guest VLAN, QoS assignment,

Supplicant Support

DoS Defend

Dynamic ARP inspection (DAI)

• SSH: V1/V2
• SSL:V1.5/V2

Port Security

Broadcast Storm Control

Guest VLAN

IP Source Guard

IPv6: Dual IPv4/IPv6 stack

Multicast Listener Discovery (MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 Applications: DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

Management: System Diagnose: VCT

DDM sFlow

• SNMP: V1/V2/V3
• RMON: Group 1, 2, 3, 9
• Command Line Interface: Telnet/Console
• Time Setting: SNTP
• Firmware Upgrade: TFTP & Web

DGCO Client & BOOTP Client

SYSLOG & Public MIBS *OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: Switch; Power Cord; Quick Installation Guide;

Resource CD; Rackmount Kit; Rubber Feet

• System Requirements: Microsoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux
• Environment: Operating Temperature: 0?~40? (32?~104?);
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Nahrazuje předcházející model TL-SL5428E.
