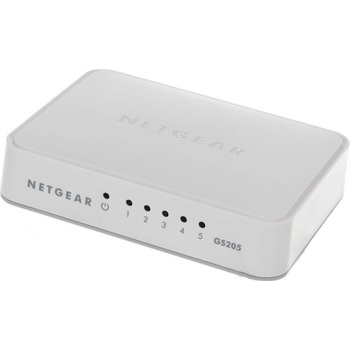

Netgear GS205

OVERVIEWcolor= "#004385">

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-Over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VOIP phones, wireless access points, etc. With these Plug-N-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. These switches also support various energy saving technologies, helping you save power and money.

• Choice of Fast Ethernet and Gigabit Ethernet connectivity
• Energy-efficient technology for power savings
• Auto-MDI/MDIX eliminates the need for crossover cables
• Non-blocking switching architecture for maximum throughput at wire speed
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VOIP phones, wireless access points, and other PD-powered devices
• Fanless design for silent operation
• Desktop or wall-mountable

NETGEAR Warranty

• This product is backed by a NETGEAR limited 3-year Hardware Warranty.
• 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller

TECH SPECScolor= "#004385">

Product Number *GS205

Model Description *5-Port Gigabit Ethernet Switch

Speed *Gigabit

Number of Ports *5

Connector Type *Plastic

Switch Housing *Plastic

LEDs *Power, Link/Activity

Short Cable Power Saving *No

Energy Efficient Ethernet Support (IEEE 802.3az) *Yes

Jumbo Frame Support *9,216 bytes

MAC Table Size *2K

Packet Buffer Size *1 Mbit

DC Power Adapter *5V / 0.7A

Max Power Consumption (Watts) *2.34W

Acoustic Noise Level @ 25° C (dBA) *0 dBA (Fanless)

Operating Temperature *0° to 40°C

MTBF (@ 25° C) *1,386,257 hours

Electromagnetic compliance (A or B) *Class B

Form Factor *Desktop or wall-mountable

Dimensions (W x D x H) *110 x 71 x 23 mm

Weight *0.10 kg

WEBSITE *Technical specification: http://www.netgear.com/home/products/networking/switches/GS205.aspx#tab-techspecs
