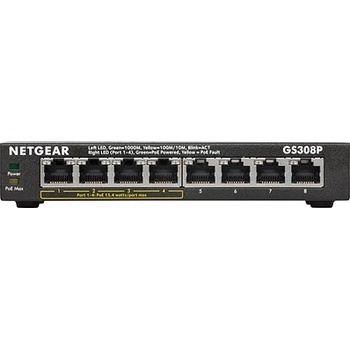

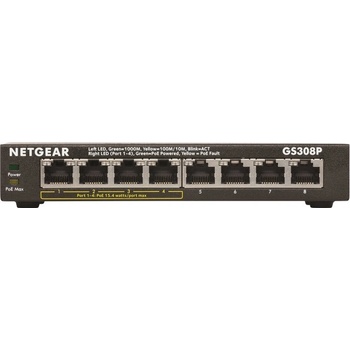

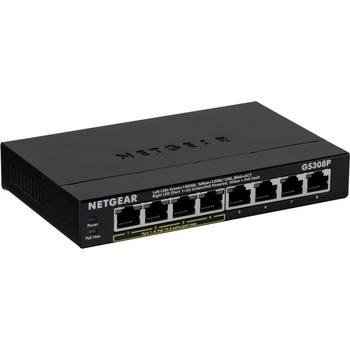

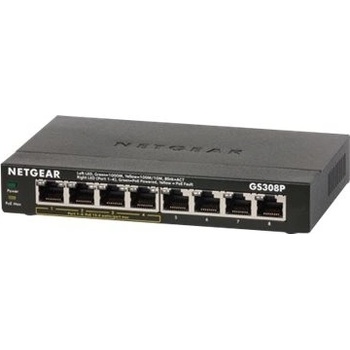

Netgear GS308P

OVERVIEW

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-Over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VOIP phones, wireless access points, etc. With these Plug-N-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. These switches also support various energy saving technologies, helping you save power and money.

• Choice of Fast Ethernet and Gigabit Ethernet connectivity
• Energy-efficient technology for power savings
• Auto-MDI/MDIX eliminates the need for crossover cables
• Non-blocking switching architecture for maximum throughput at wire speed
• Auto-negotiation for automatic connection at the highest common speed between switch and an end device
• Power-Over-Ethernet (PoE) option available for powering IP Security Cameras, VOIP phones, wireless access points, and other PD-powered devices
• Fanless design for silent operation
• Desktop or wall-mountable

NETGEAR Warranty

• These products are backup by a NETGEAR limited Hardware Warranty up to 2 years (depending on model and region).
• 24/7 basic technical support provided for 90 days from purchase date, when purchased from a NETGEAR authorized reseller

TECH SPECS

Product Number *GS308P

Model Description *8-Port Gigabit Ethernet Switch with 4-Ports PoE

Speed *Gigabit

Number of Ports *8

PoE Ports / Max Power Per Port *Ports 1-4 / 15.4W (802.3af)

PoE Max Power Supplied (All Ports) *53W

Connector Type *Metal

Switch Housing *Metal

LEDs *Power, Link/Activity (Left), Ports 1-4: PoE Power (Right)

Short cable power saving *Yes

Energy Efficient Ethernet Support (IEEE 802.3az) *Yes

Jumbo Frame Support *9,720 bytes

MAC Table Size *4K

Packet buffer size *1.5 Mbit

DC Power Adapter *48V / 1.25A

Max Power Consumption (Watts) *60.0W

Acoustic Noise Level @ 25° C (dBA) *0 dBA (Fanless)

Operating Temperature *0° to 40°C (32° to 104°F)

MTBF (@ 25° C) *2,244,211 hours

Electromagnetic compliance (A or B) *Class A

Form Factor *Desktop or wall-mountable

Dimensions (W x D x H) *158 x 101 x 29 mm

Weight *0.46 kg

WEBSITE *Technical specification: http://www.netgear.com/home/products/networking/switches/soho-ethernet-switches/GS308P.aspx#tab-techspecs
