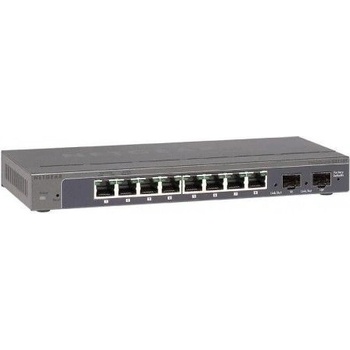

Netgear GS510TP

Powerful and intelligent PoE switch in compact form factor 8 PoE-capable Gigabit copper ports

Up to 30W per port with a total power budget of 130W on the switch

Network Protocol and Standards CompatibilityIEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-X

IEEE 802.3x full-duplex flow control

IEEE 802.3at (Power over Ethernet Plus)

Power Supply

Power consumption: 147 W maximum 100-240VAC/50-60-Hz universal input

PoE budget: 130W

Network Ports 8 10/100/1000 Mbps auto sensing Gigabit Ethernet 2 SFP slots

Physical Specifications

• Dimensions:(W x D x H) 328 x 169 x 43 mm (12.91 x 6.65 x 1.7 in)
• Weight: 1.68 kg (3.7 lb)

Electromagnetic Emissions

CE EN 55022, EN 61000 and EN 55024

FCC Part 15 Class B

VCCI Class B

C-Tick

Environmental Specifications

• Operating temperature: 32° to 122° F (0° to 50° C)
• Storage temperature: -4° to 158° F (-20° to 70° C)
• Operating humidity: 90% maximum relative humidity, non-condensing
• Storage humidity: 95% maximum relative humidity, non-condensing
• Operating altitude: 10,000 ft (3,000 m) maximum
• Storage altitude: 10,000 ft (3,000 m) maximum

LEDs

• Per port (10/100 and Gigabit):Link/activity, speed
• Per device: Power, Fan, PoE Max
• Per PoE port: PoE Power, PoE fault

Safety

UL/cUL 60950-1

CE EN 60950-1

CCC

CB

KCC

System Requirements

Category 5 UTP Network cables or above

Network card for each PC

Network software (e.g., Windows®)

Web browser (e.g., Internet Explorer 6.0 or higher, Netscape 6.0 or higher)

Administrative Switch Management

IEEE 802.1Q Static VLAN (64 groups, static)

IEEE 802.1p Class of Service (CoS)

Port-based QoS

DSCP-based QoS

DiffServ

IEEE802.3ad link aggregation (manual or LACP)

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

LLDP-MED

SNMP v1, v2c, v3

RFC 1213 MIB II

RFC 1643 Ethernet interface MIB

RFC 1493 bridge MIB

RMON group 1, 2, 3, 9

RFC 2131 DHCP client

Voice VLAN

Auto-VOIP

DHCP Filtering

Auto denial-of-service (DoS) protection

HTTP and HTTPS

Ping and traceroute

Power saving when link down

IEEE 802.1x

Port-based security by locked MAC addresses

IP and MAC ACL

Storm control for broadcast, multicast and unknown unicast packets

IGMP Snooping v1/v2/v3

Protected Port

PoE Timer

Port-based ingress and egress rate limiting

SNTP

Port mirroring support (many to one)

Web-based configuration

Configuration backup/restore

Password access control

RADIUS Support

TACACS+ support

Syslog

Firmware upgradeable

Performance Specifications

• Forwarding modes: Store-and-forward
• Bandwidth: 20 Gbps
• Network latency: -lt;4µs for 64-byte frames in store-and-forward mode for 1000 Mbps to 1000 Mbps transmission
• Buffer memory: 512KBytes per system
• Address database size: 4,000 media access control (MAC) addresses per system
• Addressing: 48-bit MAC address
• Mean time between failures (MTBF): 458,124 hours at 25C (~52.3 years)
• Acoustic noise: -lt;38 dBA

Modules

AGM731F 1000BASE-SX SFP Module

AGM732F 1000BASE-LX SFP Module

AGM733 1000BASE-ZX SFP Module

Warranty

NETGEAR Lifetime Warranty

OnCall 24x7, Category 1

PMB0331-100 (US)

PMB0331 (non-US)

Package ContentsProSafe® 8-port Smart Switch with 2 Gigabit SFP Ports (GS510TP)

Rubber footpads

Power cord

Rack-mount kit

Resource CD

Installation guide

Ordering Information

• North America: GS510TP-100NAS
• Europe General: GS510TP-100EUS
• Asia -amp; Japan: GS510TP-100AJS
