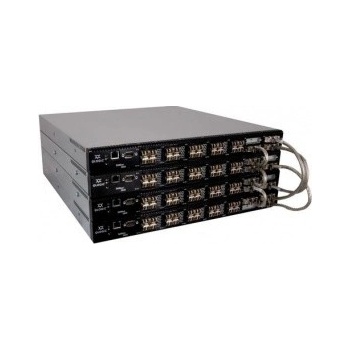

QLOGIC SB5802V-08A8

The newest addition to QLogics award-winning SANbox 5000 Series unleashes powerful data access possibilities for small to large enterprise customers. SANbox 5800V stackable switches offer SAN planners the best choice to cost-effectively handle current needs while preparing for known and unknown competitive business requirements tomorrow.

Affordable entry as low as eight 8Gb device ports plus four always on 10Gb stacking ports included (12 ports total) 20Gb Inter-switch Link (ISL) bandwidth on demand as needs change, upgrade your stacking ports to the Worlds Fastest Fibre Channel!

Full backwards-compatibility with existing 4Gb and 2Gb infrastructure

Expandable to twenty 8Gb device ports per switch (24 ports total) or 120 device ports per multi-switch stack.

Choice of cost-optimized single power supply (SB5800V) or high availability dual power supply (SB5802V) models

Scalability

Ports per chassis

Eight to twenty 8-Gbps ports (upgradable in 4-port increments)

Four 10/20-Gbps XPAK MSA-compliant ports (10-Gbps default; upgradable to 20-Gbps)

Multi-switch fabric support

All topologies including: stack, cascade, cascaded loop, and mesh

Multiple 10/20Gb or 8Gb links between switches

Adaptive trunking, intelligent path selection

Port types

All ports are universal, auto-discovering, self-configuring, and assume the following states: F_Port, FL_port, E_port, G_Port, GL_Port

Performance Features

Fabric port speeds 2/4/8-Gbps, 10/20-Gbps full-duplex. All ports auto-negotiate with slower devices or ports.

Fabric latency less than 0.2 ěs

Cut-through routing

Fabric point-to-point bandwidth 1700 MBps full-duplex on 8-Gbps ports 5100 MBps full-duplex on 20-Gbps ports

Aggregate bandwidth 544 Gbps per chassis

Non-blocking architecture

Maximum frame sizes 2148 bytes (2112 byte payload)

Per-port buffering

ASIC-embedded memory (non-shared)

Guaranteed 16 credit multi-read port buffer for full performance up to 13km @ 2-Gbps and 2 km @ 10-Gbps

Extended distance through credit donation

Media

Hot-pluggable, industry-standard 3.3 volt SFP+ transceivers for 8-Gbps ports

Hot-pluggable, industry-standard XPAK optics or copper stacking cables for 10/20-Gbps ports

Compatible with 4-Gbps and 2-Gbps SFPs

Supported SFP types

Shortwave/longwave (optical), active copper

Maximum Media transmission ranges

Device ports (@ 2-Gbps)

• Shortwave optical: 500 m (1,640 ft.)
• Longwave optical: 10 km (6.2 mi.)

Stacking ports (@ 10-Gbps)

• Shortwave optical: 300 m (984 ft.)
• Longwave optical: 2 km (1.2 mi.)

Cable types 50/62.5 micron multimode fiber optic 9 micron single-mode fiber optic

Interoperability

Compatible with FC-SW-2 compliant switches including Brocade, Cisco, and McDATA management interoperability with leading SAN management applications

Dimensions

H x W x D: 43.2 x 432 x 500 mm (1.7 x 17 x 20 in)

Weight 5802: 8.16 kg (18 lbs); 5800: 6.8 kg (15 lbs)
